 Seair
Technologies, Inc.'s first product is the Seair
Flying Boat. It has been in production for over a year, and has been
featured in television and magazines.
This page contains our specifications list. For more information, you can look at our brochure and FAQ page. Those two pages should answer most questions about the Seair Flying Boat, but if you have other questions please contact us. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
Seair Flying Boat Specifications |
 |
||
|
Price:
$23,000 (US) (plus tax where applicable) |
||
| Wing | ||
|
Model |
19 meter Northwing Mustang Trike wing (strutted) |
|
|
Surface Area |
206 square feet (35% double surface) |
|
|
Weight |
98 lbs |
 |
|
Span |
33.9 feet |
|
|
Aspect Ratio |
5.8 / 1 |
|
|
Sail |
8 oz Dacron |
|
|
|
|
|
|
Engine |
Rotax 582, 2 stroke, 65 hp, water cooled, 151 lbs |
|
|
|
|
|
|
Flight Characteristics |
Cruises at 45 mph, climbs at 800-1000 ft/min, stall speed 25mph, max speed 55 mph, takes off and lands in 200 feet of water, max load 450 lbs (including passenger and pilot) |
|
| Fuel | 10 gallon diamond-plate
aluminum range approximately 90 miles or 2 hours (depending on weather) |
|
| Hull | 5052 Marine Grade Alloy, with 6061 T-6 Aluminum structural supports | |
| Floats/Chambers | Triple Chamber floats, constructed from high quality Neoprene (Hypalon™) from DuPont (constructed to rescue boat standards) | |
| Frame | 84" tall mounted in hull, 2" continuous bent stainless steel tubing with reinforcement at structural supports joints, marine grade steel cables and connectors | |
| Optional Equipment |
|
|
| Boat Trailer | $750 | |
| BRS Chute | $2,995 + $250 for mounting bracket | |
| Windshield | $250 | |

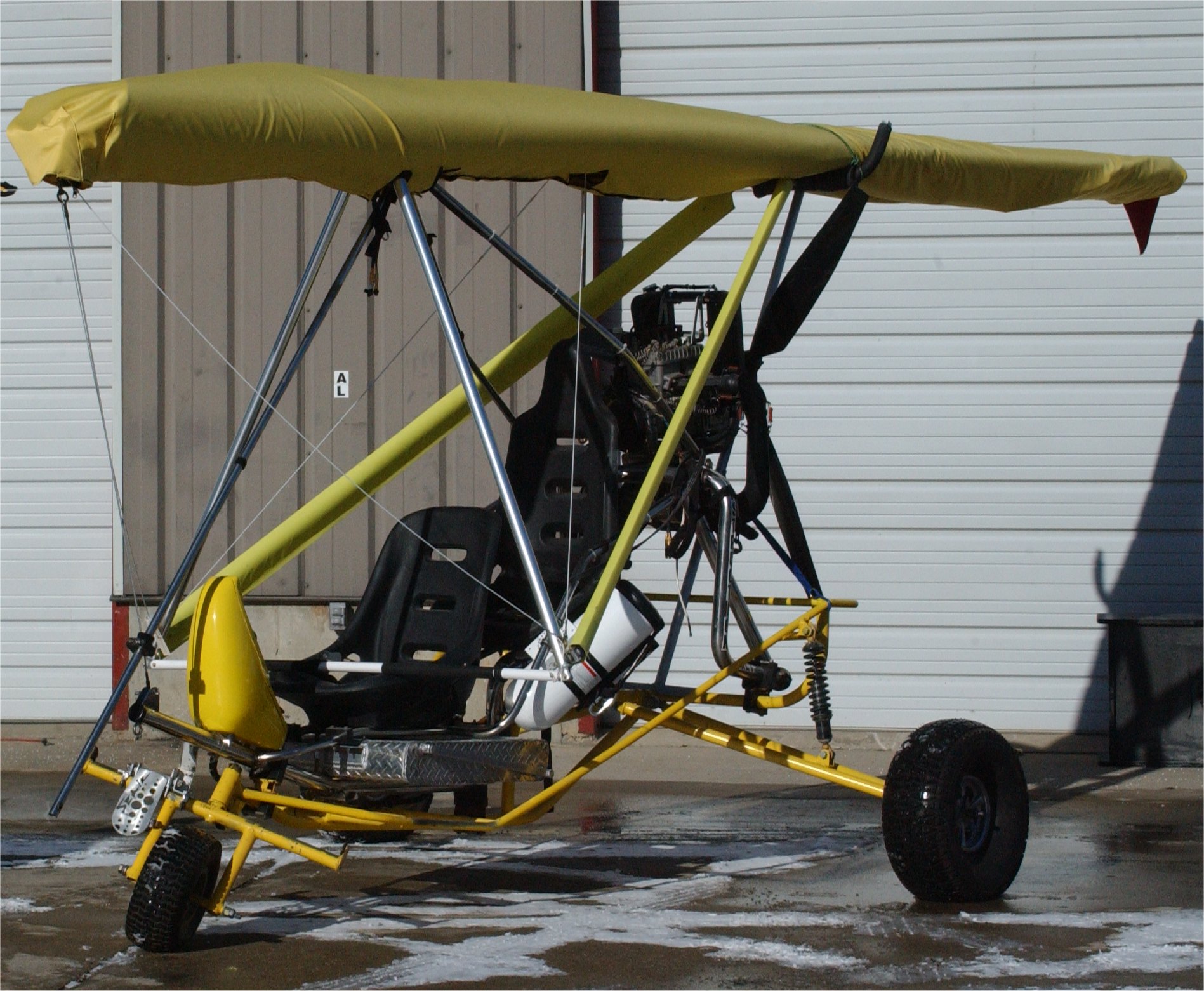

| Trike Frame (see picture at left) | $3,500 | |
|
• |
|
|
|
